Shackles

Thông số kĩ thuật:

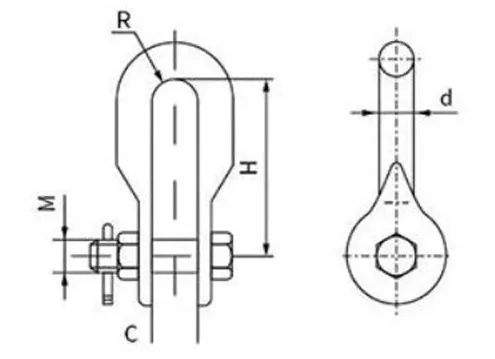

Catalog No.	Dimensions (mm)					Rated Failure Load (kN)	Weight (kg)
Catalog No.	C	M	D	h	r	Rated Failure Load (kN)	Weight (kg)

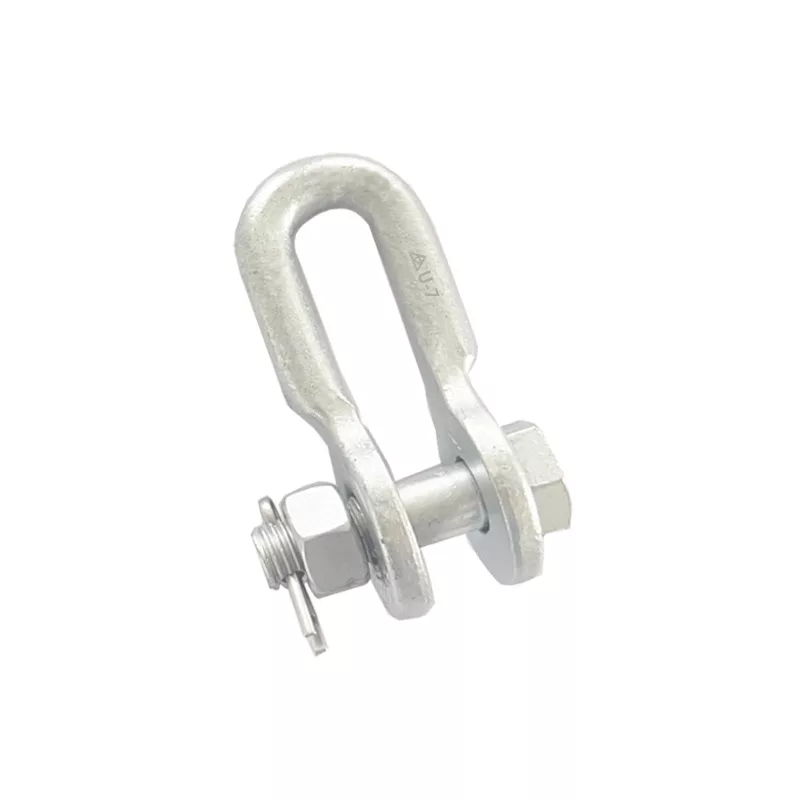

U-7	20	16	16	60/80	22	70	0.5
U-10	22	18	18	85	24	100	0.6
U-12	24	22	20	90	30	120	1
U-16	26	24	22	95	32	160	1.5
U-21	30	27	24	100	36	200	2.3
U-25	34	30	26	110	40	250	2.8
U-30	38	36	30	130	46	300	3.7
U-40	42	42	36	150	55	400	6.4
U-50	44	42	36	150	55	500	7.0
U-70	40	42	36	170	55	700	9.5
U-100	44	48	42	200	65	1000	14.5
