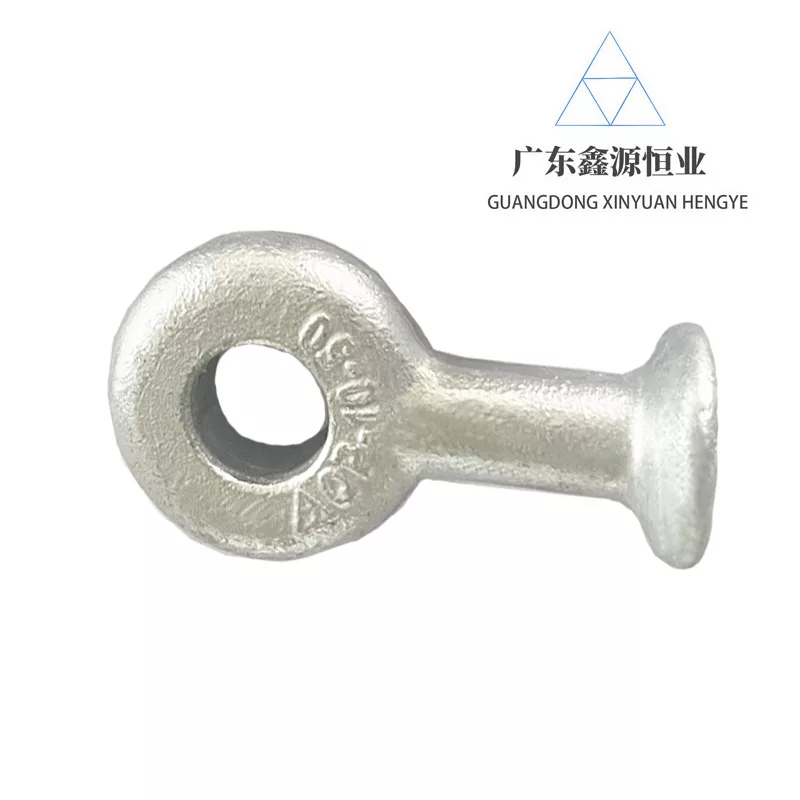

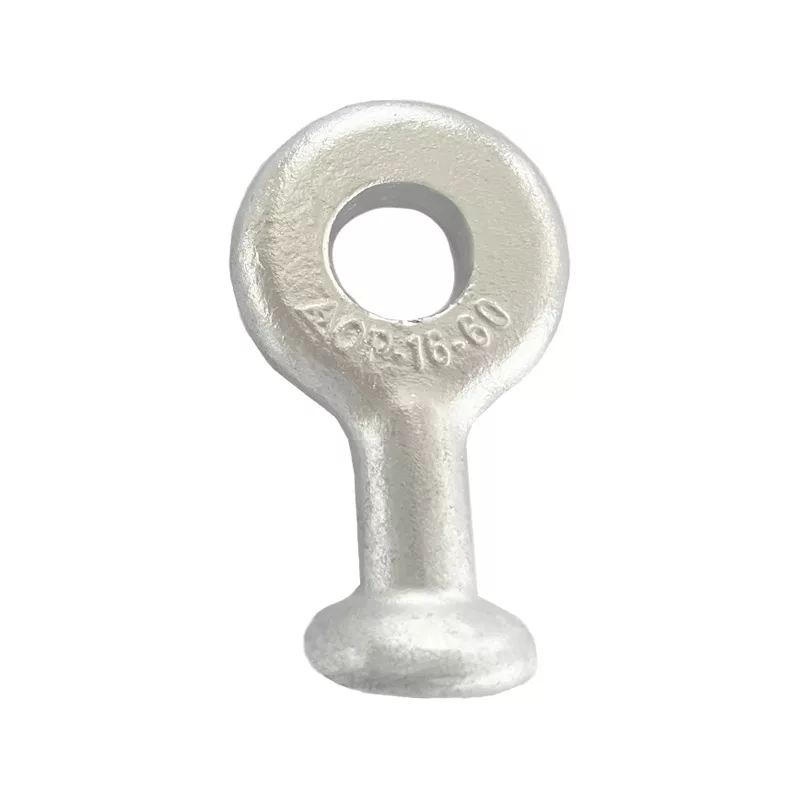

Móc treo kiểu Q/QP

Thông số kĩ thuật:

电力金具_02

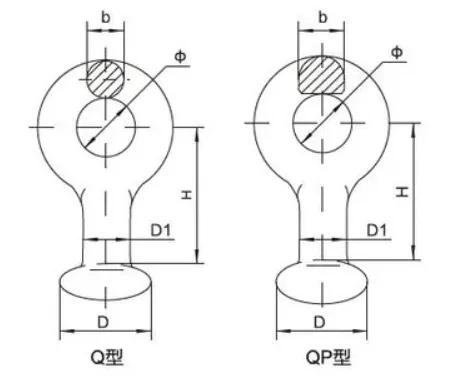

Catalog No.	Dimensions (mm)					Rated Failure Load (kN)	Wt. (kg)	Designated Size of Coupling
Catalog No.	Ø	D	h	d	d1	Rated Failure Load (kN)	Wt. (kg)	Designated Size of Coupling
QP-4	22.8	12	35	13.5	12	40	0.1	11
Q-7	33.3	17	50	22	16	70	0.3	16
QP-7	33.3	17	50	20	16	70	0.3	16
QP-10	33.3	17	50	20	16	100	0.3	16
QP-12	33.3	17	55	24	17	120	0.4	16
QP-16	33.3	21	60	26	20	160	0.5	20
QP-1680	33.3	21	80	26	18	160	0.6	20
QP-21	49	24	70	29	24	210	1.0	24
QP-25	49	25	80	33	28	250	1.1	24
QP-30	49	25	80	39	28	300	1.1	24
QP-16S	33.3	21	60	26	18	160	0.5	20
QP-21D	41	21	70	29	21	210	1.0	20
QP-21S	41	21	80	26	20	210	0.7	20
QP-25S	49	25	80	30	24	250	1.0	24
QP-32S	49	25	80	33	28	320	1.2	24
QP-42S	57	29	100	39	32	420	1.5	28
QP-53S	65	33	100	45	36	530	2.6	32
