Kẹp song song

Thông số kĩ thuật:

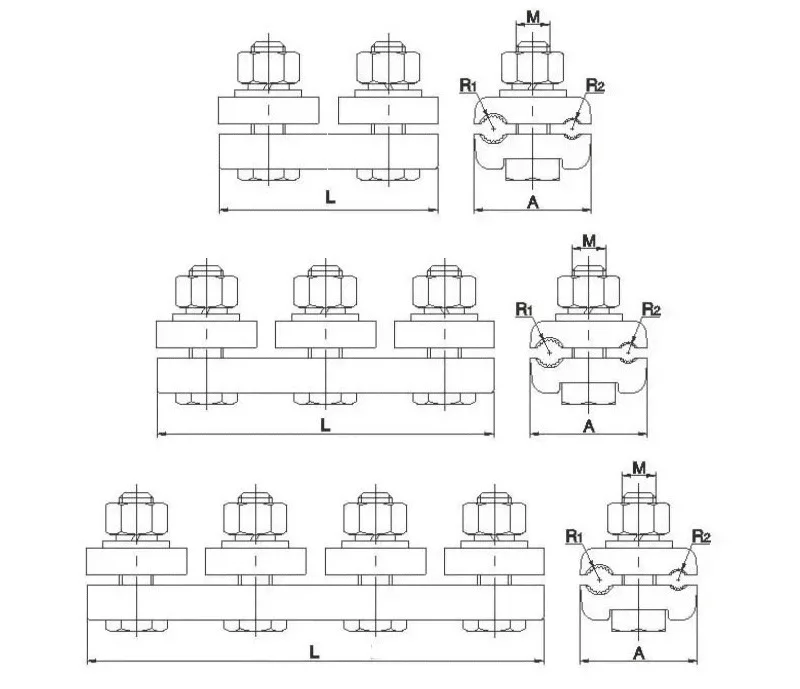

五金详情长_02

Catalog No.	Conductor Section Area (mm²)	Dimensions (mm)					Weight (kg)	Fig. No.
Catalog No.	Conductor Section Area (mm²)	a	M	L	R	H	Weight (kg)	Fig. No.
JB-0	16-25	38	10	72	3.5	35	1.2	1

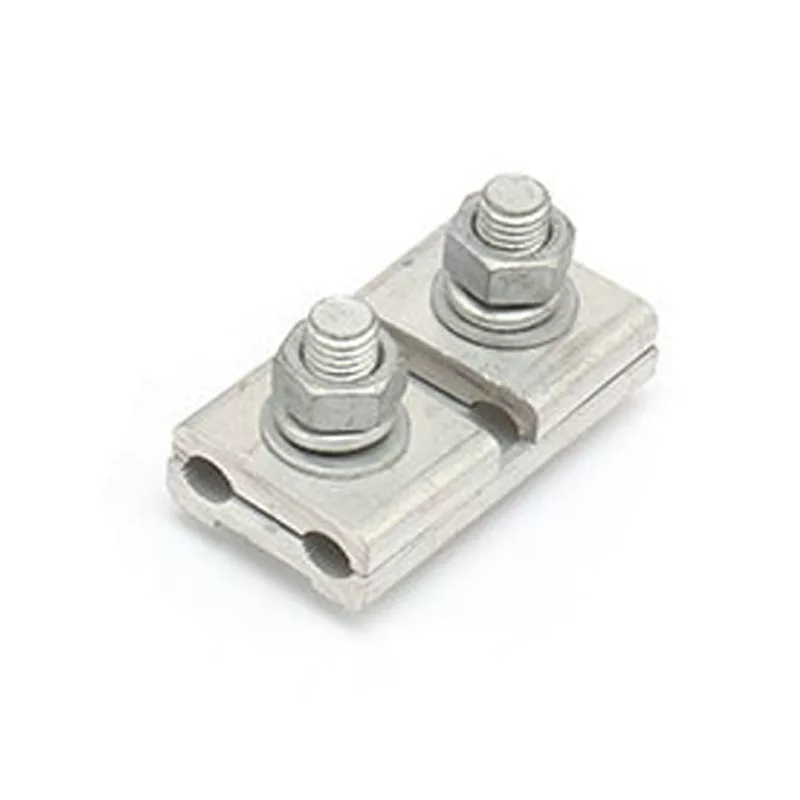

JB-1	25-50	46	12	80	5	45	0.4	1
JB-2	70-95	54	12	114	7	55	0.7	2

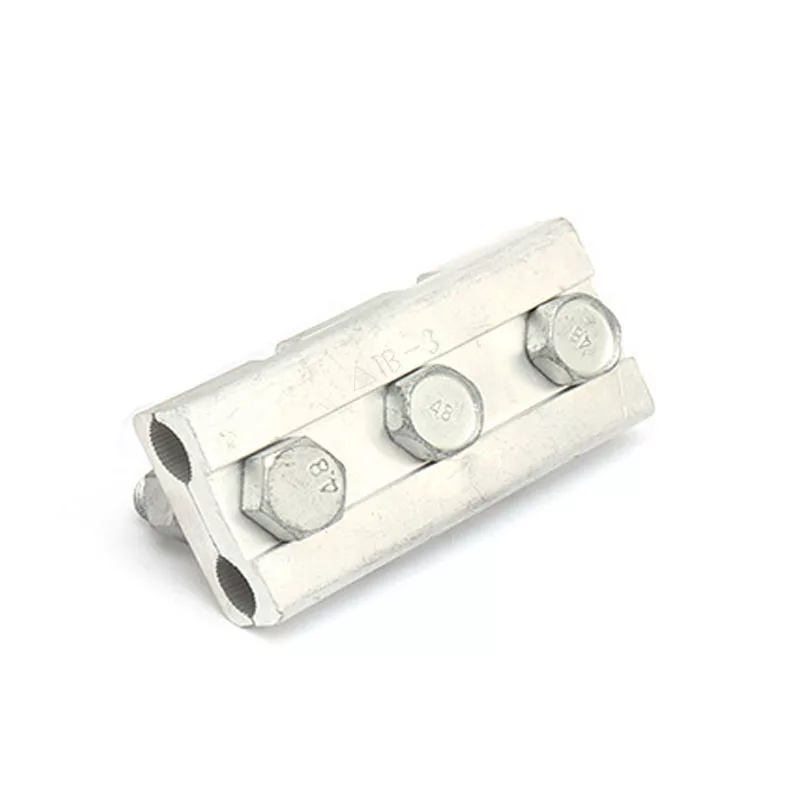

JB-3	120-150	64	16	140	8.5	60	1.1	2
JB-4	185-240	72	16	144	11	65	1.3	2

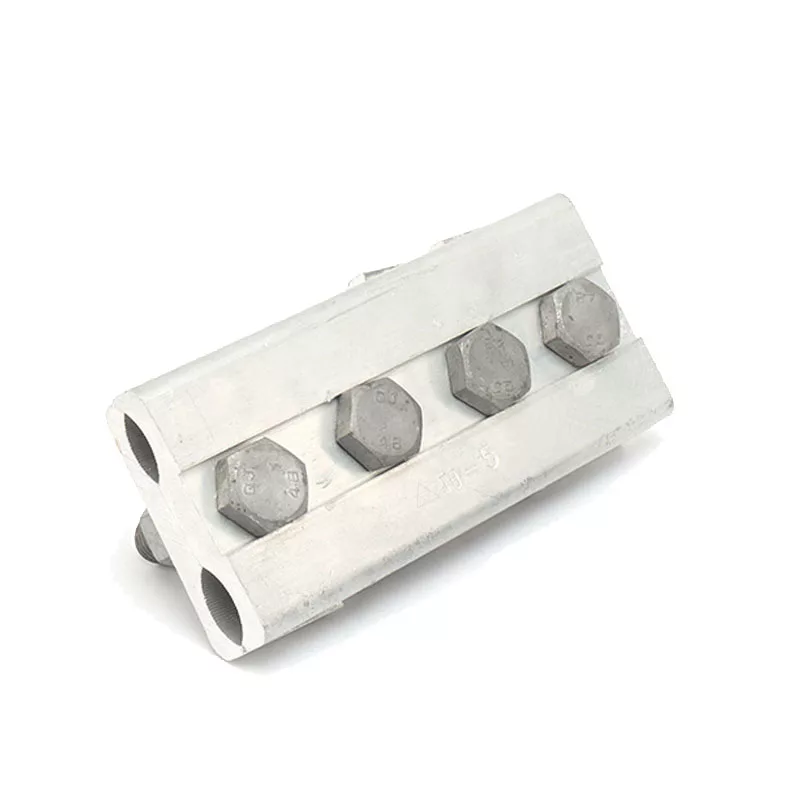

JB-5	300-460	100	20	215	15.5	110	2.5	3
JB-6	500-630	110	25	230	18.5	120	3.1	3
